Tyvek® 500 HP
TY178S HP

Award-winning innovation

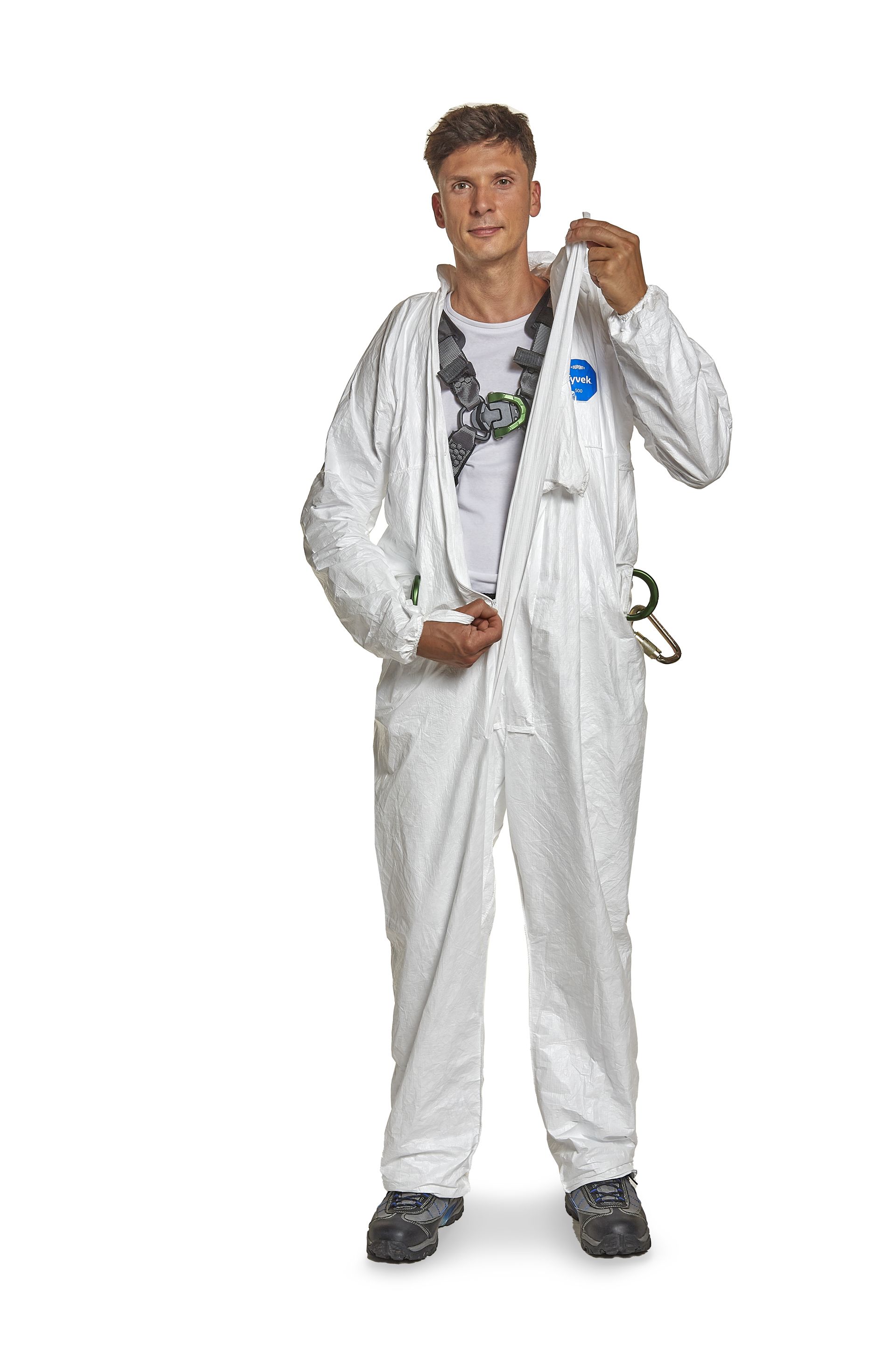

DuPont™ Tyvek® 500 HP (Harness Protection) TY178S HP coverall with four D-Ring sleeves attached to the garment. Ergonomic, protective design – patent pending. Multiple access points to the full-body harness (worn underneath the garment) through four elasticized D-Ring sleeves: one in the front, one in the back, and one on each side of the garment. Off-centered zipper entry to accommodate the front D-Ring sleeve for front D-Ring connection. 3-piece hood. Stitched seams. Elasticated wrists, ankles, waist, and hood. Thumb loops made of Tyvek® fabric. Tyvek® zipper and flap. Antistatic treatment. White.Quantity/box: 25 per box, individually packed





Product Info & Wear Trials

Cat III
Type 5-B
Type 6-B
EN 1149-5
EN 1073-2 Class 2
EN 14126
Product Image
Click circles to show off details
Catalogues & Codes

Reference:

SKUSizeD-code
TY178SWHSM0025HPSM  D15573147
TY178SWHMD0025HPMD  D15573148
TY178SWHLG0025HPLG  D15573149
TY178SWHXL0025HPXL  D15573150
TY178SWH2X0025HP2X  D15573151
TY178SWH3X0025HP3X  D15573262
TY178SWH4X0025HP4X  D15573263
TY178SWH5X0025HP5X  D15573264
Benefits, Features & Applications

Benefits:

  • Certified according to Regulation (EU) 2016/425.
  • Chemical protective clothing, Category III, Type 5-B and 6-B.
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination).
  • Antistatic treatment (EN 1149-5) – on both sides of the fabric
  • Innovative, patent-pending design for applications where full-body harness is worn; garment is designed to be worn over the full-body harness
  • Multiple access points to the full-body harness through the four elasticized D-Ring sleeves that are attached to the garment - one in the front, one in the back, and one on each side of the garment
  • Off-centered zipper entry to accommodate the front D-Ring sleeve for front D-Ring connection
  • 3-piece hood with elastic face opening
  • Stitched seams
  • Tyvek® thumb loops
  • Tyvek® zipper and Tyvek® storm flap
  • Elasticated ankles & wrists and elasticated (glued-in) waist
  • Ample crotch area
  • Silicone non-added
  • Dynamic Fall Test with an articulated mannequin - Tested in an independent testing laboratory as well as at a harness manufacturer with a conclusion that the Tyvek® 500 HP TY178S HP garment does not affect the dynamic fall test performance of the full-body harness when worn underneath this garment. The test is successful as it demonstrated that the Tyvek® 500 HP TY178S HP garment is not impairing the proper function of the full-body harness in case of a fall.















-
